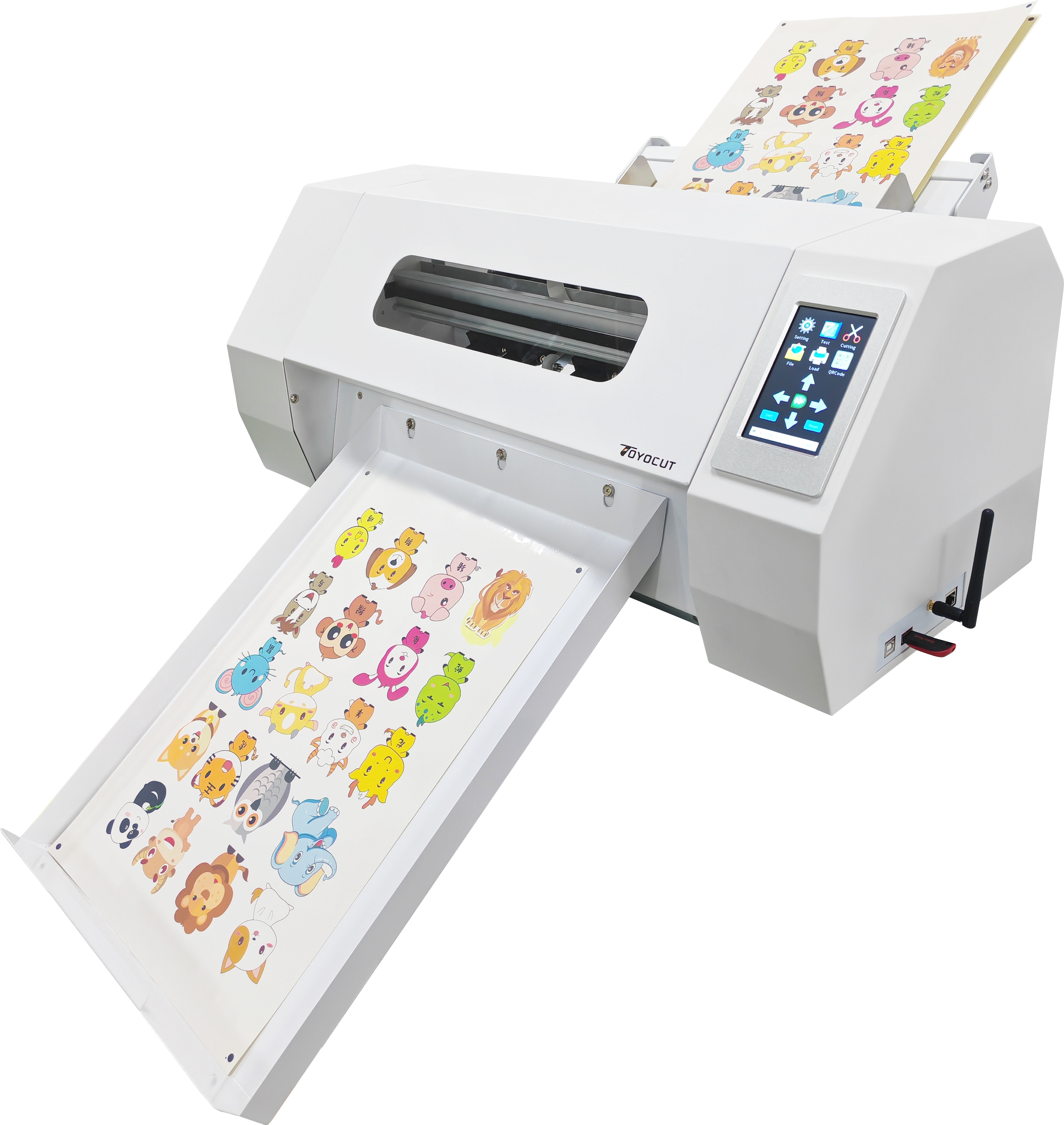

SurperFast Auto feeding digital label cutter

A digital solution that small quantity batch production is allowed without any unnecessary stock

Advanced Intelligent Servo Control System

  • Super Fast with High Precision to increase working effects
  • Support 100pcs pages to load.High speed to save working time
  • Intelligent program to correct cutting position when madia slip
  • High Quality Camera to guarantee different material scanning smoothly
  • Coreldraw& Adobe illustrator output directly no need extra software
  • Support USB disk , WIFI, LAN and USB cable communication
Get Free Quote

    Model: TOYOCUT C13Servo(DualHead optional)
    Max media width: 335mm
    Max cutting width: 320mm
    Mark: 5mm round mark for camera
    Blank size: 5mm edge margin
    Mainboard : High Speed Arithmetic Microprocessor, 32Bit+8Bit MCU(Dual Core) 1GB Cache
    Interface: USB/U Disk/WIFI& Newwork(Optional
    Control panel: 4.3inch High Resolution Touch Screen
    Driver: Advanced intelligent servo control system
    Display: 4.3inch High Resolution Touch Screen +1.7 inch lcd for camera
    Drawing instruction: DMPL / HP-GL
    Max cutting speed: 1600mm/s
    Max cutting thickness: 1mm
    Pressure: 50-1700g (160grades digital adjustable)
    Mechanical precision: 0.025mm
    Pepeatable precision: <+- 0.1mm
    Power supply: AC90~240V / 50HZ~60HZ
    Positioning model: Bounded system,random original point setting
    Working model: Roller,Single, Multiple media Auto-feeding
    Operational environment: +5℃~ +35℃，relative humidity 30%~70%
    Package details: Net weight:26.5kg
    Gross weight: 31kg
    Machine Dimension: 685*650*290mm
    Carton size: 810*575*475mm（dual head 895*575*475mm)
